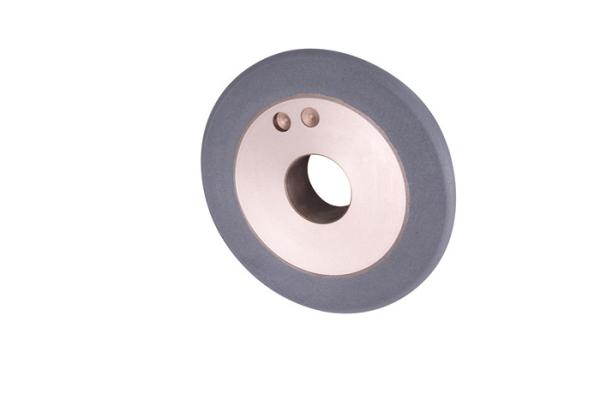

11V9 12V9 Hybrid Bond Grinding Wheel For Cutting Tools Industry 150 grit

11V9 12V9 Hybrid Bond Grinding Wheel For Cutting Tools Industry 150 Grit

Hybrid bond wheels with most advantages of both resin and metal bonds, free cutting and self-sharpening, good regidity and strengh, excellent shape retention, deep grinding and fast feed, long dressing interval, workpiece in good quality, little viberation, low load, efficiency 100-150% higher than the resin bond

Feature:

Outstanding cutting ability
High precision
Easy dressing ability
Long dressing interval
Long tool life
Low machine load
No crack on grindle

Specification:

Shape	D	T	W/U	X	V°	Grit	Application
1A1	50-175	6-20	6-20	5-15		D54-D107	Fluting/OD grinding
1V1	50-175	6-20	6-20	3-10	10-80°	D54-D107	Fluting/Gashing
3A1/14A1	50-175	8-20	3-10	3-10	10-80°	D54-D107	Fluting/OD grinding
11V9	50-150	25-40	3	10	70°	D46-D64	Clearance/Other operations
12V9	50-150	20-25	3	10	45°	D54-D107	Gashing/Other operations

Application:

Hybrid bond grinding wheels are mainly used in CNC Tools Grinding Machine with a very excellent stability and high flexibility,it’s requirement for the diamond grinding wheel could not be reached by usual diamond grinding wheel. The most demanding and time consuming operation is the flute grinding where we have a high stock removal- a cutting depth of 7-8mm is not unusual.

The Hybrid Diamond/CBN Grinding Wheel especially used for the CNC Tools grinding machine has the following performance:

1, High wheel shape retention, suitable for the high precision tools operation

2, High stock removal 4-7mm

3, Superior surface quality

4, Very low spindle load

5, Fast cutting speed

6, High wear resistance for longer life
