1A1 14A1 Resin Bonded Grinding Wheel For Roller Industry 200-750mm Diameter

    Buy cheap 1A1 14A1 Resin Bonded Grinding Wheel For Roller Industry 200-750mm Diameter from wholesalers

    Buy cheap 1A1 14A1 Resin Bonded Grinding Wheel For Roller Industry 200-750mm Diameter from wholesalers
    • Buy cheap 1A1 14A1 Resin Bonded Grinding Wheel For Roller Industry 200-750mm Diameter from wholesalers

    1A1 14A1 Resin Bonded Grinding Wheel For Roller Industry 200-750mm Diameter

    Ask Lasest Price
    Certification : High QC standard, 100% inspection
    Price : Negotiable
    Delivery Time : 10-14 days delivery time
    Payment Terms : T/T
    Supply Ability : 20000 pcs per month capacity
    • Product Details
    • Company Profile

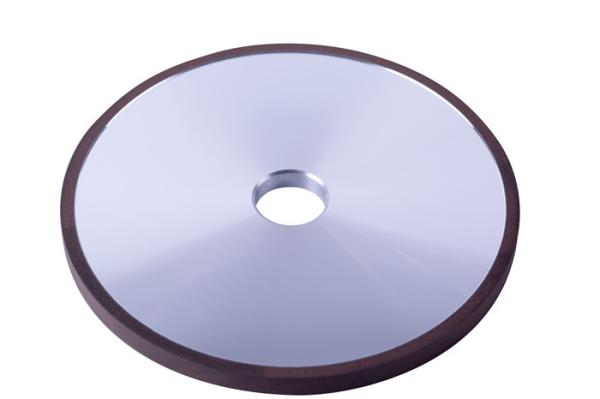

    1A1 14A1 Resin Bonded Grinding Wheel For Roller Industry 200-750mm Diameter

    Resin Bond Diamond Wheels for Carbide Roller

    We offer resin bond diamond grinding wheels for carbide roll can completely replace plain grinding wheel. The grinding wheel has good sharpness, long service life, large single feed, and can be grinded with large allowance. For accident rollers and crack rollers with large allowance, the processing efficiency is obviously improved. There are no scratches or vibration marks on the surface of the workpiece.


    Specification:

    Shape1A1, 14A1
    Diameter200-750 mm
    Grit Size80-3000#
    GrinderAll cylindrical grinder: STUDER, JUNKER, REXROTH, JTEKT, KOYO, TOYODA, SHIGIYA.
    BondResin Bond
    GritDiamond
    WorkpieceRotary die cutter, Anvil, Printing roller, Screw rod, Mandrel, Shaft, Carbide ring, Round cutting tools...

    Features:

    1. Free cutting
    2. Long tool life
    3. Perfec surface quality
    4. High efficiency
    5. Good wear resistance

    Application:
    Rollers always have a large size to rolling or cutting ductile materials. The commend Roller material is hardened steel. Some rollers are made in stungsten carbide material or coating carbide layer on steel core. The high wear resisting ability ensure the carbide roller a longer tool life and high efficiency work. Our diamond wheels work with tungsten carbide perfectly and no scratch on surface. We special design different bond and grit size for different workpiece like rotary die cutter, press roller, screw rod, mandrel, shaft...
