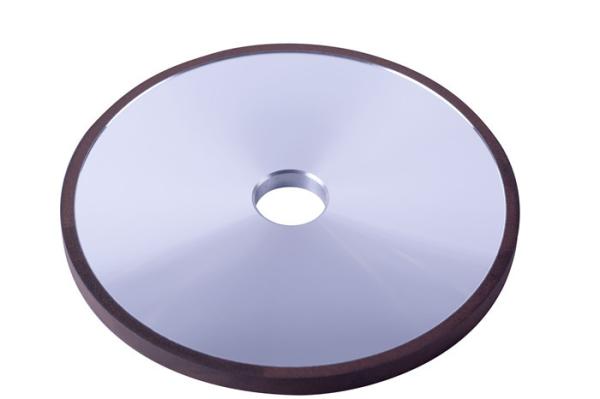

Oil Gas Industry 400# 500# Diamond Grinding Wheel

Product Categories

Xinzheng Dia Abrasives Co.,Ltd

Contact Now

Add to Cart

Resin & Vitrified Bond Grinding Wheel For Oil And Gas Drill Industry

Diamond wheels are widely used in Oil&Gas industry, they can be used for grinding PCD bit teeth and many other parts.

Features:

High grinding efficiency
Small grinding force
High wear resistance
High accuracy workpiece
Low grinding temperature

Vitrified bond

Good self-sharpening with pores and little damage to the spindle of the grinding machine

The grinding wheel is sharp and the grinding efficiency is high.

When grinding, the cutter is not back-off and the size of PDC is a good consistency

The centerless vitrified diamond grinding wheel is suitable for finish grinding polycrystalline diamond compacts(PDC).

Specifications:
Common Shape	Wheel Size	Grit Size	Classic Specification
1A1,11A2, 6A2	Vitrified bond: 1A1 OD:200, 250 T:50 H:75, 127,203, 228.6, 305 Vitrified bond centerless: 1A1, 6A1, 9A1 OD:200, 250, 300, 350, 400, 450, 500 T:50,100,125, 150, H:75, 127, 203, 305 Diamond Width: 3mm, 5mm, 10mm, 15mm, 20mm	rough grinding (400#, 500#, 600#), medium grinding (800# and 1000#), finish grinding (1500#, 2000#), super finish grinding (3000#, 4000#, 6000#)	1A1 wheels are used for cylindrical grinding in manufacturing and dressing PDC bits 1A1 457.2D50.8T304.8H10X 1A1 600D76T304.8H10X 1A1 609.6D76T304.8H16X 1A1 750D76T304.8H10X 1A1 900D76T304.8H10X Resin bond centerless grinding wheel is applied in the finishing process of PDC cutter 6A2 150D40T32.4H5W(10,15,20)10X 6A2 125D40T32.4H5W(10,15,20)10X 6A2 100D40T32.4H5W(10,15,20)*10X

Application
Industry	Workpiece&Material	Machine	Bond	Working Data
Mining Drill, Oil&Gas Drill	PDC, Polycrystall diamond compact	Ewag, Anca, COBORN, Farman and others PCD grinding machine.	Resin Vitrified
