Centerless Grinding Wheel With Long Using Life For Bearing Industry

Ask Lasest Price
Certification :	High QC standard, 100% inspection
Price :	Negotiable
Delivery Time :	10-14 days delivery time
Payment Terms :	T/T
Supply Ability :	20000 pcs per month capacity

Add to Cart

Product Details
Company Profile

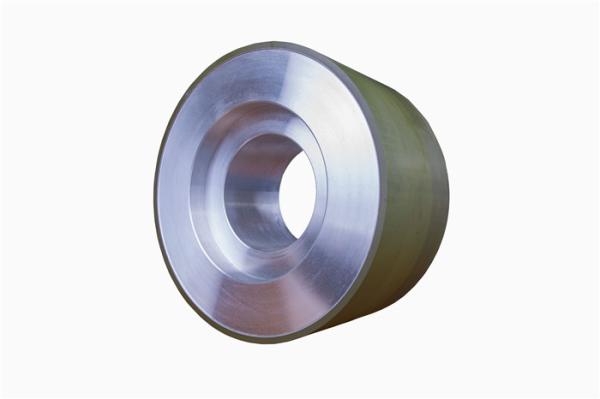

Centerless Grinding Wheel With Long Using Life For Bearing Industry

Centerless Grinding Wheels

Centreless grinding is grinding the outer surface of any cylindrical part, supported without centres on a stationary work rest blade and moving between the grinding wheel and the regulating wheel.

Feature:

High production efficiency
Long using life
sharper
better surface finish

Specification:

Resin Bond

Shape (D×T×H×X)	Shape (D×T×H×X)
1A1 300×80×H×10	1A1 350×100×H×10
1A1 300×100×H×10	1A1 350×125×H×10
1A1 300×150×H×10	1A1 350×150×H×10
1A1 400×150×H×10	1A1 500×100×H×10
1A1 400×205×H×10	1A1 500×150×H×10
1A1 450×205×H×10	1A1 500×200×H×10
1A1 450×255×H×10	1A1 500×250×H×10
1A1 600×405×H×10	1A1 750×455×H×10

Vitrified bond

Shape (D×T×H×X)

1A1 405×95×H×4

1A1 450×205×H×5

1A1 500×250×H×5

Metal bond

Shape (D×T×H×X)

1A1 455×130×H×3

9A1S 220×101×H×5

9A1S 220×141×H×5

Application:

Normally be used for grinding outer cylindrical or conical surface. Often used for mass production of outer cylindrical surface.

Workpiece: Tungsten carbide rods, Bearing rings, valve plug, piston pin etc.

Cut depth can be up to 0.15~0.20mm for roughing

Finishing with excellent surface finish, can achieve mirror surface
